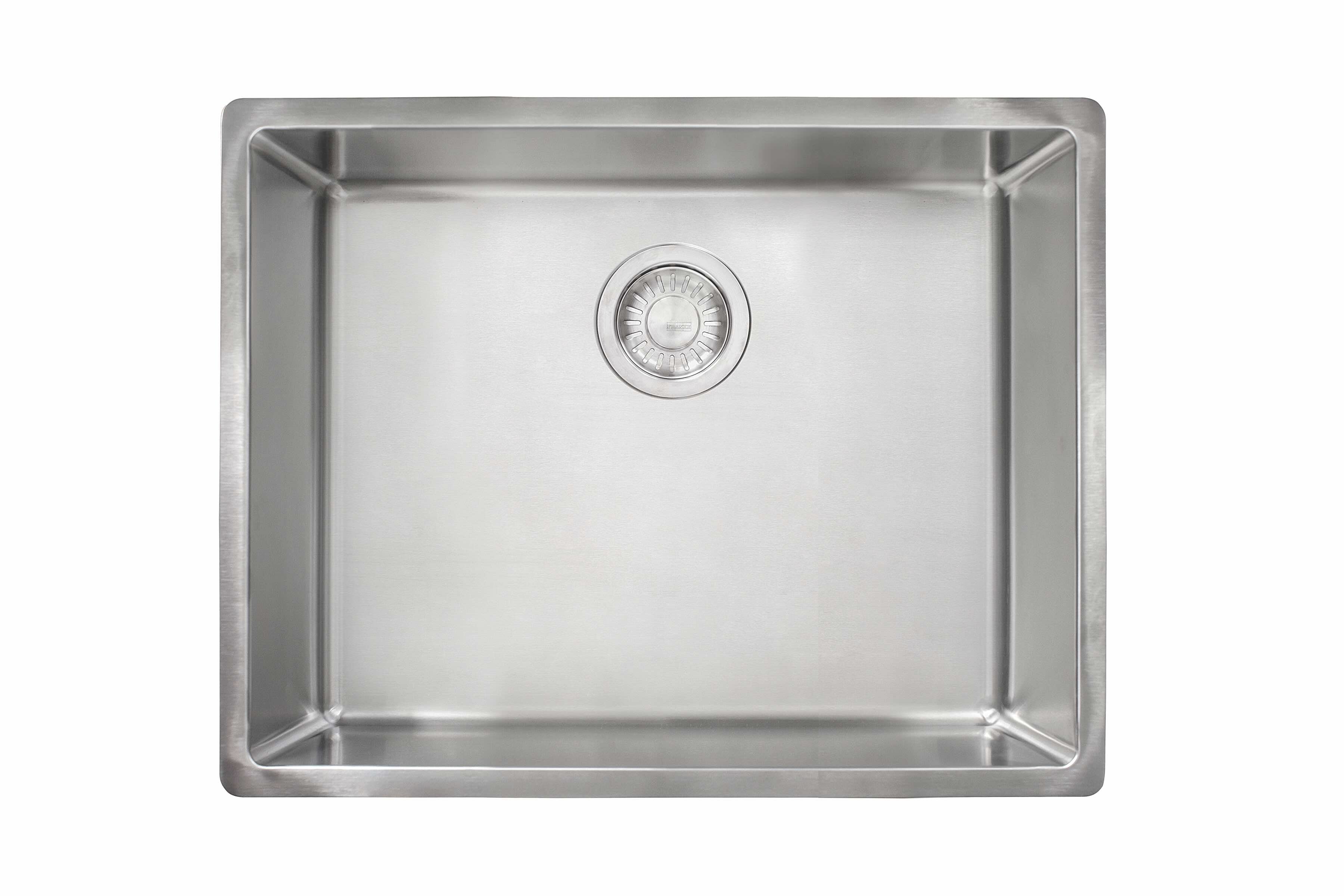

Franke Cube 24.5-in. x 17.6-in. 18 Gauge Stainless Steel Undermount Single Bowl Kitchen Sink - CUX11023

A 30" Cabinet Sink That Leaves Room to Work

Fitting a 30" sink base but want a little counter space left on either side of the bowl? The Franke Cube CUX11023 is the narrower of the two Cube sinks for a 30" cabinet, at 24.56" outside, which leaves a comfortable margin of countertop around it for a soap dispenser, an air switch or simply a cleaner look.

Inside, the 23" by 9" deep bowl still swallows a large skillet or a stack of mixing bowls, and the squared-off corners give you a flat floor right to the edges. The rear drain keeps the middle of the bowl clear for washing.

Choose this one over the 26.62" CUX11025 if you value deck space and a slightly more generous countertop overhang; choose the CUX11025 if you want every inch of bowl.

RESOURCES

Specification Sheet
Franke Warranty

FEATURES

• Size: 24.56" x 17.68" outside, with a 23" x 16.12" bowl that is 9" deep
• Fits: a 30" or wider base cabinet
• 18 gauge stainless steel: thick enough to resist dents and flexing under heavy pots
• Pearl finish: a soft brushed sheen that hides fine scratches and water spots better than a mirror polish
• Quiet: sound-dampening pads plus an undercoating cut the drumming of running water and the rattle of a disposal
• Rear drain (3.5"): the sloped floor carries water to the back, keeping the center of the bowl clear and freeing up cabinet space for a disposal or pull-out bins
• No faucet holes: the faucet mounts in your countertop or on the wall, so you choose its exact placement

Q&A

What is the difference between this and the CUX11025?

Both fit a 30" cabinet. This sink is about 2" narrower, leaving more countertop around the bowl; the CUX11025 has a 25" long bowl for maximum capacity.

Is there a matching grid?

Yes. The Franke CU23-36S grid is cut to fit this bowl.

Can I install it with a laminate countertop?

No. Undermount sinks need a solid countertop, such as granite, quartz, marble or solid surface, because the sink hangs from the underside of the counter and the cut edge stays exposed. Your fabricator cuts the opening using the template on the spec sheet.
